Details

• Platform

  Trail
• Model Name

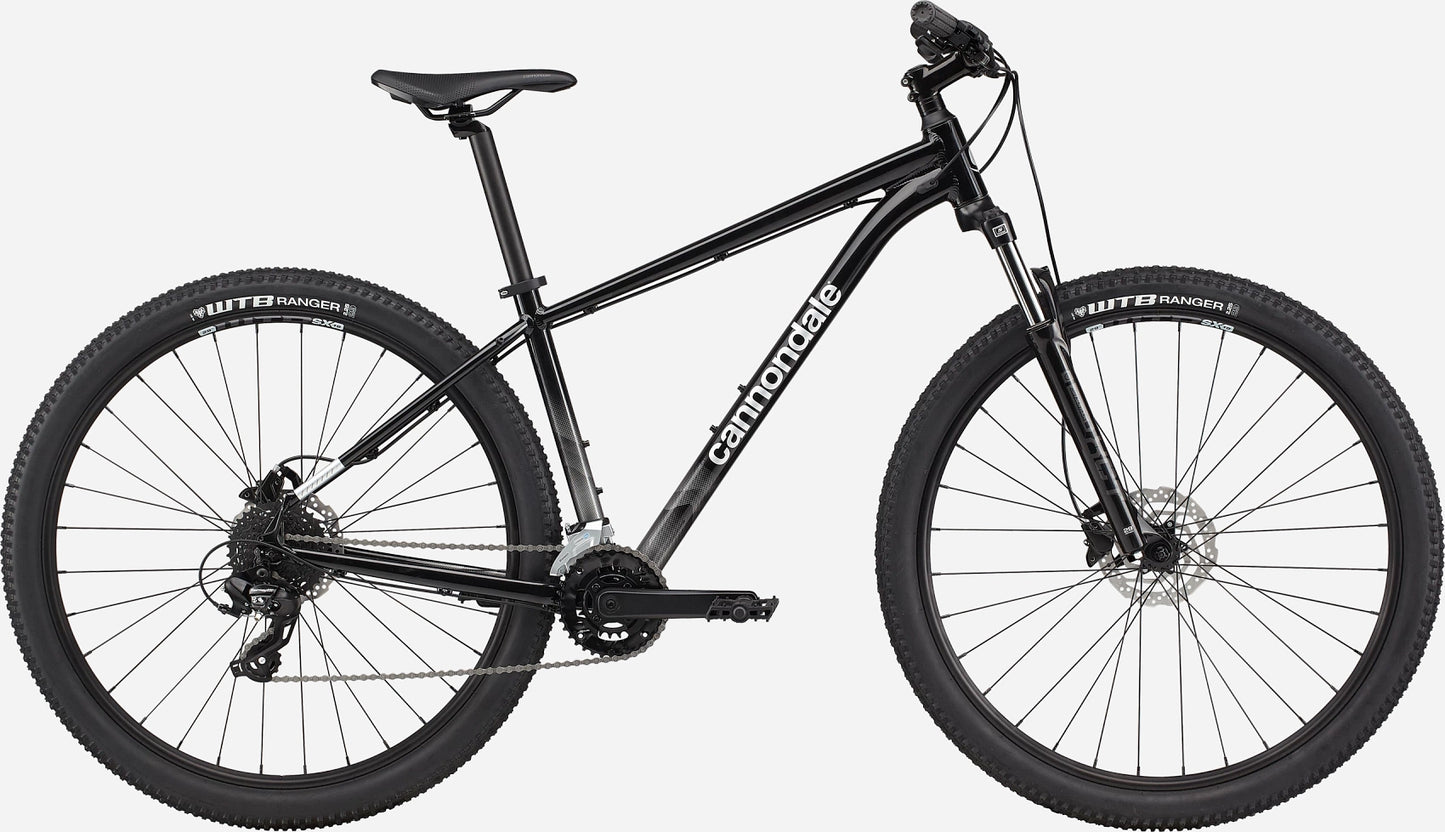

  Trail 7
• Model Code

  C26701M

Frameset

• Frame

  SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
• Fork

  SR Suntour XCT DS, 100mm, coil, 42mm offset (27.5") 46mm offset (29")
• Headset

  Semi-Integrated, 1-1/8"

Drivetrain

• Rear Derailleur

  microSHIFT M36L
• Front Derailleur

  microSHIFT Dual Pull Compact, Band Clamp
• Shifters

  microSHIFT, 8-speed
• Chain

  KMC Z8.1, 8-speed
• Crank

  Prowheel, 36/22
• Rear Cogs

  Sunrace, 11-34, 8-speed
• Bottom Bracket

  Sealed cartridge bearing, square taper

Brakes

• Brakes

  Tektro M275 hydraulic disc, 160/160mm rotors
• Brake Levers

  Tektro hydraulic disc

Wheels

• Front Hub

  Shimano QC300, QR
• Rear Hub

  Shimano QC300, QR
• Brake Type

  Disc
• Rims

  WTB SX19, 32h
• Spokes

  Stainless Steel, 14g
• Tire Size

  2.25
• Wheel Size

  29
• Tires

  WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound
• Front Tire

  WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound
• Rear Tire

  WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Components

• Handlebar

  6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
• Stem

  6061 Alloy, 31.8, 8°
• Grips

  Cannondale Dual-Density
• Saddle

  Cannondale Stage 3
• Seatpost

  Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-XL)
